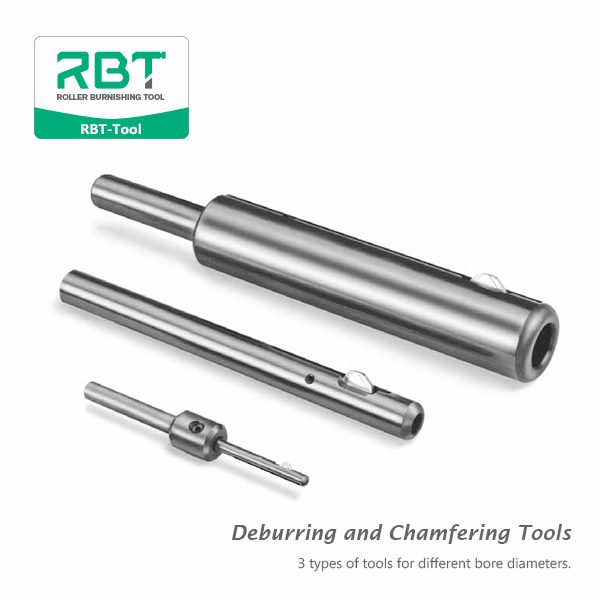

3 types of tools for different bore diameters.

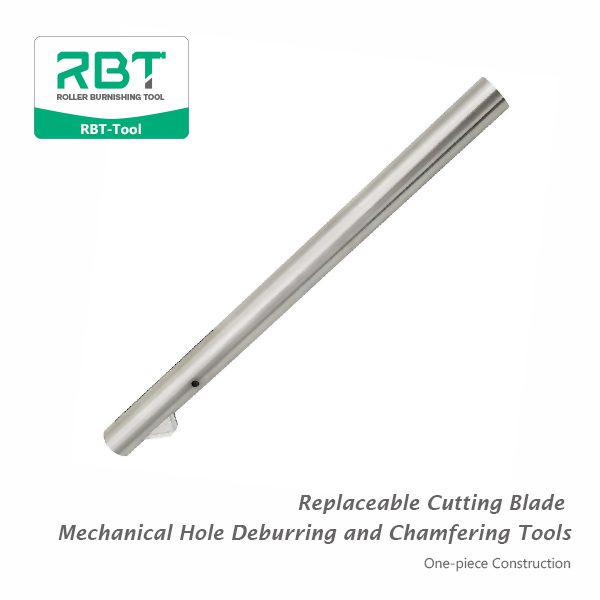

Replaceable Cutting Blade Mechanical Hole Deburring and Chamfering Tools (One-piece Construction)

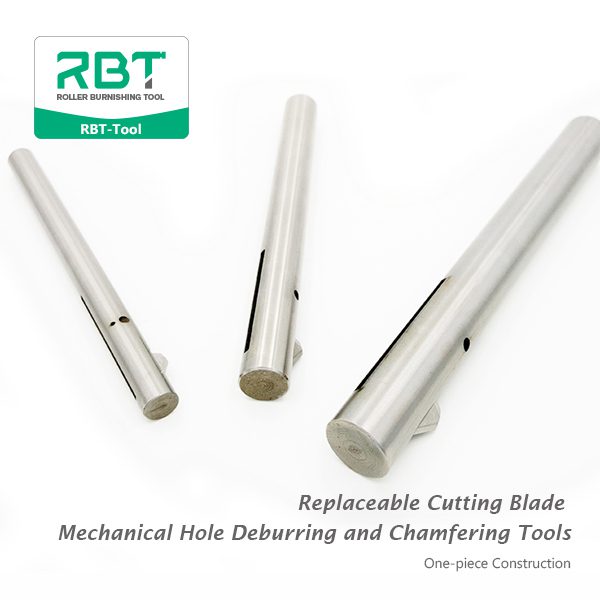

Replaceable Cutting Blade Mechanical Hole Deburring and Chamfering Tools (One-piece Construction)

Replaceable Cutting Blade Mechanical Hole Deburring and Chamfering Tools (One-piece Construction)

RBT’s Micro Deburring Tools for smaller sized holes of medical, automotive and electronic applications demanding continually. This micro deburring tool include the arbor and blade, and a holder which accommodates all the different cartridges. We are chamfering & Deburring tools manufacturer and supplier.

Compare

Description

universal deburring tools, deburring tools, deburring tools manufacturer, universal deburring tools supplier, Replaceable Cutting Blade Deburring and Chamfering Tools, Deburring and Chamfering Tools, One-piece Deburring Tool, Mechanical Hole Deburring Tools, Cheap Deburring Tools

universal deburring tools, Replaceable Cutting Blade Mechanical Hole Deburring and Chamfering Tools (One-piece Construction)



Specifications of Deburring Tools

RBT ultra deburring tool type A drawing

RBT ultra deburring tool type A drawing



Unit (mm)
Tool Model HOLE SIZES Dim.(A) Dim.(B) BALDE SIZE ROTATE SPEED(RPM)
RBT-FT-3 3 87.5 3.5 sv-1/8# 800-1000
RBT-FT-4 4 98 3.5 sv-1/8# 800-1000
RBT-FT-5 5 105 3.8 sv-3/16# 800-1000
RBT ultra deburring tool type B drawing

RBT ultra deburring tool type B drawing

Unit (mm)
Tool Model HOLE SIZES Dim.(A) Dim.(B) BALDE SIZE ROTATE SPEED(RPM)
RBT-FT-6 6 110 5 1# 800-1000
RBT-FT-7 7 110 5 1# 800-1000
RBT-FT-8 8 115 5 2# 800-1000
RBT-FT-9 9 127 5 3# 800-1000
RBT-FT-10 10 127 5 3# 800-1000
RBT-FT-11 11 127 5 3-1/2# 600
RBT-FT-12 12 127 5 3-1/2# 600
RBT-FT-13 13 127 10 3-1/2# 600
RBT-FT-14 14 140 10 4# 600
RBT-FT-15 15 140 10 4# 600
RBT-FT-16 16 155 10 4# 600
RBT-FT-17 17 155 10 4# 600
RBT-FT-18 18 155 10 4# 600
RBT-FT-19 19 180 10 4# 600
RBT ultra deburring tool type C drawing

RBT ultra deburring tool type C drawing

Unit (mm)
Tool Model HOLE SIZES BALDE SIZE ROTATE SPEED(RPM)
RBT-FT-20 20 5# 600
RBT-FT-21 21 5# 600
RBT-FT-22 22 5# 600
RBT-FT-23 23 5# 600
RBT-FT-24 24 5# 600
RBT-FT-25 25 5# 600



Micro Deburring Tools

Micro Deburring Tools for smaller sized holes of medical, automotive and electronic applications demanding continually.
RBT’s Micro Deburring Tools features are inexpensive, replaceable cartridges which include the arbor and blade, and a holder which accommodates all the different cartridges. The Micro Deburring Tools  can be set differently in order to deburr various sizes of deburring lags, both sides of even the smallest of holes in one pass. The two-piece construction allows you to remove and replace a cartridge conveniently. The Micro Deburring Tools can be used in both CNC machines as well as hand drills – special adjustments are not required.
Micro Deburring Tools Micro Deburring Tools for smaller sized holes of medical, automotive and electronic applications demanding continually. RBT’s Micro Deburring Tools features are inexpensive, replaceable cartridges which include the arbor and blade, and a holder which accommodates all the different cartridges. The Micro Deburring Tools can be set differently in order to deburr various sizes of deburring lags, both sides of even the smallest of holes in one pass. The two-piece construction allows you to remove and replace a cartridge conveniently. The Micro Deburring Tools can be used in both CNC machines as well as hand drills – special adjustments are not required. Features: • Easy to use on all machines • Changing the direction of the rotation is not required • Cost-efficient tools and spare blades • Easy replacement and long service life of the blades • Deburring thickness adjustable via spring tension • Solutions for various applications realizable • Standard tools from Ø 2,0 to Ø 50,0 from stock BURRAWAY – universal deburring tools

Features:

• Easy to use on all machines
• Changing the direction of the rotation is not required
• Cost-efficient tools and spare blades
• Easy replacement and long service life of the blades
• Deburring thickness adjustable via spring tension
• Solutions for various applications realizable
• Standard tools from Ø 2,0 to Ø 50,0 from stock
Replaceable Cutting Blade Mechanical Hole Deburring and Chamfering Tools (One-piece Construction)

Replaceable Cutting Blade Mechanical Hole Deburring and Chamfering Tools (One-piece Construction)



How RBT universal deburring tools works?

How BURRAWAY universal deburring tools work?

How RBT universal deburring tools works?

How BURRAWAY universal deburring tools work
1. Feed-in

Upon entry, the burr on the front side is removed due to the spring tension holds the cutting blade in the extended position.

How BURRAWAY universal deburring tools work
2. Feed-thru

As the feeding increase, passing through the bore the blade is pressed under spring pressure and retracted automatically. (The crowned and polished top surface of the cutting edge will not mar inside bore surface of workpiece).

How BURRAWAY universal deburring tools work
3. Feed-out

Through back side of the hole, spring tension again causes the blade to extend as it emerges from the internal of the workpiece. On the return stroke, the burr is deburred on the back side of hole.

3 types of tools for different bore diameters.

3 types of tools for different bore diameters.
